How Reference Blackbodies Are Characterized

A reference blackbody is more than a heat source with a known temperature. For radiative calibration, the source must produce a radiation field that is stable, uniform, repeatable, and traceable within a quantified level of uncertainty.

That means laboratories must characterize not only the blackbody’s temperature, but also its emissivity, cavity geometry, spatial uniformity, stability, aperture, and radiometric output. These characteristics ultimately determine how confidently the source can be used when calibrating instruments such as Gardon Gauge and Schmidt-Boelter heat flux sensors.

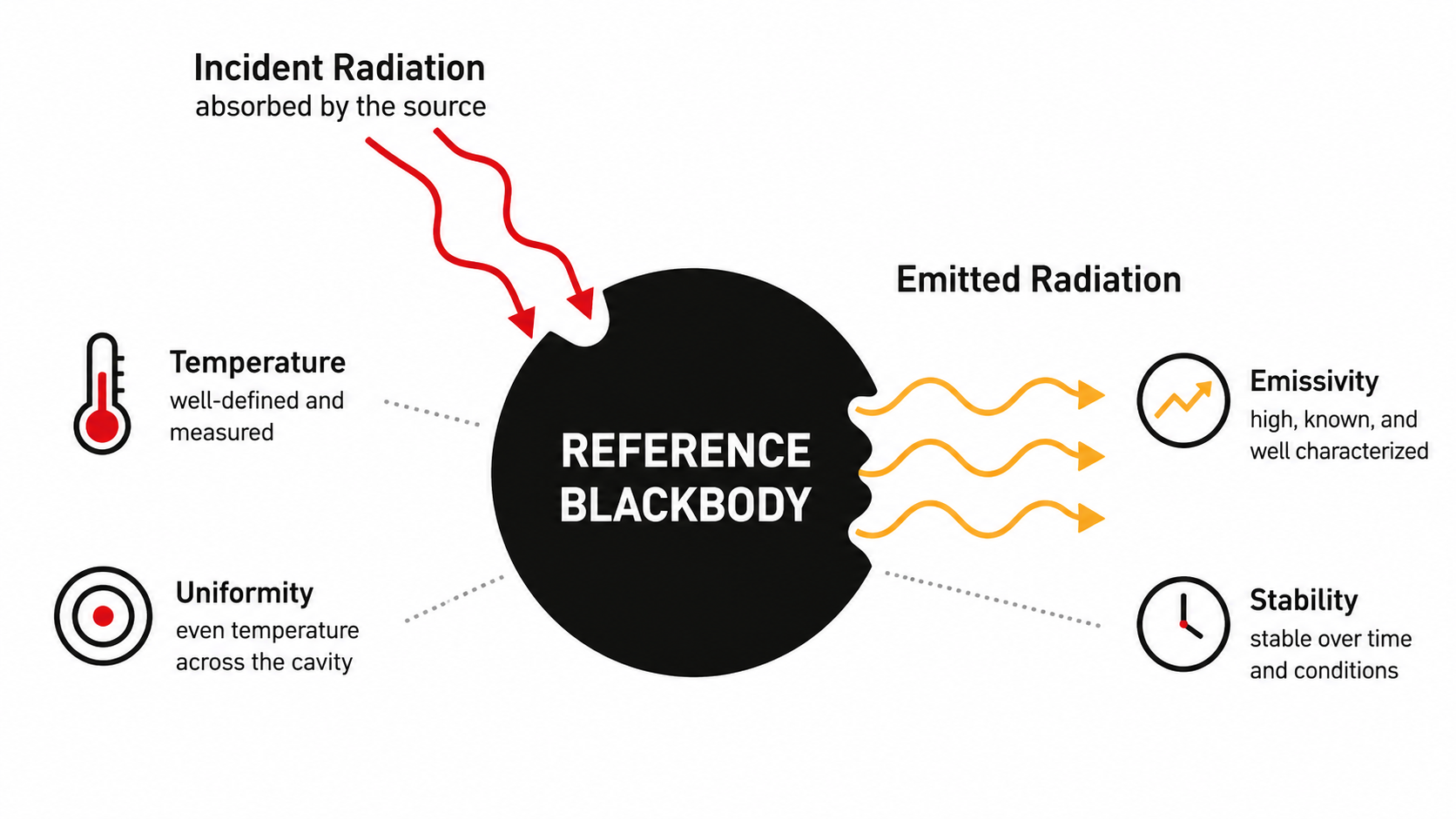

What Makes a Blackbody a Reference Source?

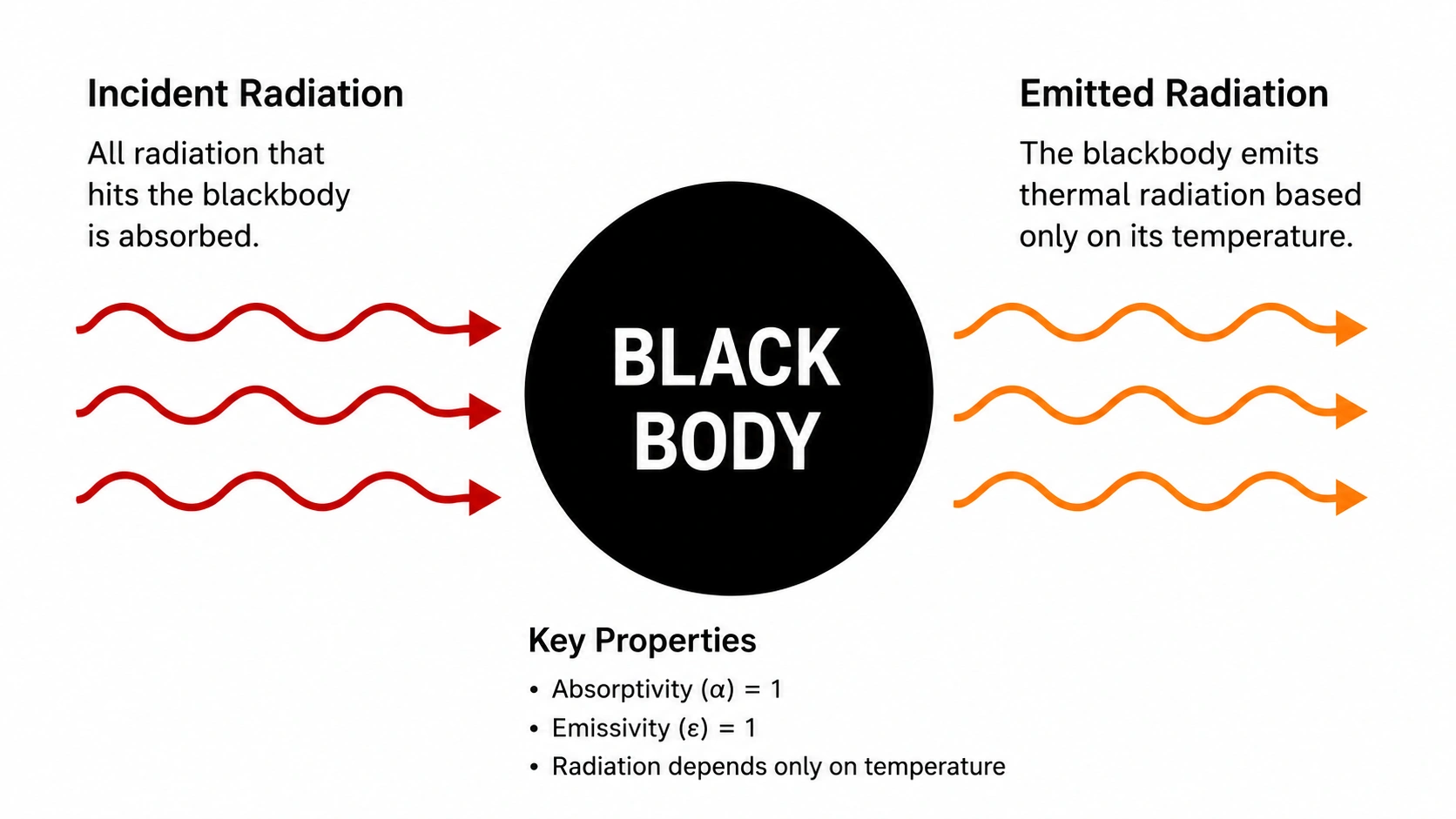

An ideal blackbody absorbs all incident radiation and emits thermal radiation solely as a function of its temperature. Real calibration sources cannot achieve perfect emissivity, so practical reference blackbodies are engineered to behave as closely as possible to that ideal.

Cavity-style sources accomplish this by allowing radiation to undergo multiple internal reflections before exiting through an aperture. This produces an effective emissivity that can approach unity.

For context, NIST’s Radiance Temperature Calibration Laboratory describes a variable-temperature blackbody with an emissivity greater than 0.9985 that is also used for heat flux gauge calibrations.

The underlying principles are covered more broadly in our guide to blackbody sources in heat flux calibration.

1. Characterizing Blackbody Temperature

The first requirement is establishing the temperature of the emitting cavity with a known uncertainty.

Depending on the temperature range and system design, this may involve:

• Platinum resistance thermometers
• Thermocouples
• Radiation thermometers
• Fixed-point temperature references

The objective is not simply to read a controller display. The laboratory must establish how accurately the measured temperature represents the radiating surface or cavity responsible for the emitted radiation.

NIST’s radiation thermometry program, for example, uses variable-temperature blackbodies whose temperatures can be established using contact thermometry or working-standard radiation thermometers, depending on the system.

This matters because blackbody temperature directly affects heat flux calibration. Radiant output changes rapidly as source temperature increases, so even relatively small temperature uncertainties can become important contributors to the final heat flux uncertainty.

2. Determining Effective Emissivity

A reference blackbody must also have a well-characterized effective emissivity.

Emissivity describes how efficiently a real surface emits thermal radiation compared with an ideal blackbody at the same temperature.

For an ideal blackbody:

ε = 1

Real sources have emissivity slightly below 1.

Cavity geometry can increase effective emissivity because radiation undergoes repeated reflections before leaving the aperture. The result is a source that behaves much more like an ideal blackbody than a simple heated flat surface.

Factors affecting effective emissivity include:

• Cavity depth
• Aperture diameter
• Internal surface coating
• Cavity shape
• Surface temperature distribution
• Viewing geometry

A small uncertainty in emissivity becomes part of the total uncertainty associated with the radiation field.

3. Measuring Temperature Uniformity

Knowing the average cavity temperature is not enough.

A reference blackbody should also have a uniform temperature distribution across the region contributing radiation to the measurement.

If one area of the cavity is significantly hotter than another, the radiation field seen by the heat flux sensor may differ depending on its position and field of view.

Laboratories can characterize uniformity by evaluating temperature or radiance at multiple positions across the source.

The goal is to identify:

• Axial temperature gradients
• Radial gradients
• Hot spots
• Cooler regions near the aperture
• Changes caused by operating temperature

Temperature-gradient effects are especially important in high-temperature measurement systems, as discussed in How Temperature Gradients Affect Thermal Measurements.

4. Evaluating Source Stability

A reference blackbody must remain stable during calibration.

Once the source reaches its target operating temperature, the laboratory evaluates how much its temperature or radiance changes over a defined period.

For example, the source may fluctuate slightly around its setpoint:

1000.0°C → 1000.2°C → 999.9°C → 1000.1°C

Those changes may appear minor, but because radiative output is highly temperature-dependent, they can introduce measurable changes in heat flux.

Characterization therefore includes evaluating:

• Short-term stability
• Warm-up behavior
• Controller cycling
• Long-term drift

Calibration normally begins only after the source has reached an established state of thermal stability.

5. Characterizing the Aperture and Geometry

Blackbody calibration is also heavily influenced by geometry.

Important parameters include:

• Aperture diameter
• Sensor-to-source distance
• Cavity depth
• Sensor alignment
• Viewing angle
• Sensor active area

These determine how much of the radiation field reaches the sensor.

A heat flux gauge positioned closer to the aperture may experience a substantially different irradiance than one located farther away, even though the blackbody temperature has not changed.

For that reason, a reference blackbody is characterized as part of a measurement geometry, not merely as an isolated heater.

The relationship between the source, aperture, reference sensor, and test sensor must remain controlled and reproducible.

6. Measuring Radiance or Irradiance

Temperature and emissivity can be used to predict blackbody radiation, but high-quality calibration systems may also characterize the source radiometrically.

Depending on the application, laboratories may evaluate:

• Spectral radiance
• Total radiance
• Irradiance at a defined plane
• Radiance temperature

NIST maintains national radiation-temperature capabilities using blackbody physics and detector-based measurement methods, providing traceability for radiation thermometry standards.

For heat flux calibration, what ultimately matters is the radiation incident on the sensor’s active surface.

This is why a reference heat flux sensor may also play an important role in characterizing or transferring the heat flux level produced by the source.

7. Checking Repeatability

A reference source should produce the same radiation field whenever identical operating conditions are restored.

A laboratory may therefore characterize repeatability by cycling the source through different temperatures and returning to previously tested operating points.

For example:

500°C → 800°C → 1000°C → 800°C

If the second 800°C condition produces essentially the same radiometric output as the first, the source demonstrates good repeatability.

Poor repeatability can indicate:

• Controller instability
• Aging heating elements
• Changes in cavity coating
• Temperature sensor drift
• Mechanical changes to the calibration geometry

Repeatability becomes another contributor to the calibration uncertainty budget.

8. Evaluating Spectral Characteristics

Blackbody radiation spans a broad range of wavelengths, and its spectral distribution changes with temperature.

As temperature increases:

• Total emitted radiation increases
• Peak emission shifts toward shorter wavelengths

This matters because real heat flux sensors may not respond identically across all wavelengths.

Characterizing the source’s operating temperature and spectral behavior helps ensure that the calibration radiation field is appropriate for the sensor being evaluated.

This becomes particularly important when comparing calibration conditions with applications involving flames, furnaces, combustion, or other radiation sources whose spectra may differ from the calibration blackbody.

9. Establishing Measurement Traceability

A reference blackbody must ultimately be connected to traceable measurements.

Traceability may involve calibrated:

• Temperature standards
• Radiation thermometers
• Electrical measurement systems
• Dimensional measurements
• Reference radiometers or heat flux sensors

Each link contributes uncertainty.

The resulting chain connects the source characterization to recognized national or international measurement standards. Our guide to NIST traceable calibration explains how these chains work in practice.

NIST states that its radiation thermometry calibration standards are disseminated through blackbodies, radiation thermometers, and related transfer standards made traceable to the SI.

10. Building the Blackbody Uncertainty Budget

Once the source has been characterized, its uncertainty must be quantified.

Typical blackbody-related contributors can include:

Contributor	What It Represents
Temperature calibration	Accuracy of the temperature reference
Temperature stability	Fluctuation during calibration
Temperature uniformity	Spatial differences within the cavity
Emissivity	Departure from ideal blackbody behavior
Aperture geometry	Uncertainty in dimensions and positioning
Alignment	Sensor orientation relative to the source
Distance	Source-to-sensor positioning
Repeatability	Variation between repeated conditions
Reference instrument	Uncertainty of the transfer/reference sensor

These contributions become part of the overall measurement uncertainty in calibration results.

An extremely stable blackbody does not automatically guarantee a low-uncertainty heat flux calibration. The source is only one part of the complete measurement system.

Why Characterization Must Be Repeated

Blackbody characteristics can change over time.

Potential causes include:

• Aging heating elements
• Changes in cavity coatings
• Oxidation
• Temperature sensor drift
• Mechanical movement
• Repeated high-temperature cycling

Laboratories therefore perform periodic calibration, verification, or intermediate checks to confirm that the source continues to behave within established limits.

This type of equipment control is particularly important for laboratories operating under ISO/IEC 17025, the international standard used to assess the competence and consistent operation of testing and calibration laboratories.

Reference Blackbody vs. Ordinary Blackbody Source

The distinction is important.

An ordinary blackbody source may provide a selectable temperature and high emissivity.

A reference blackbody must go further. Its performance must be quantitatively understood.

That means knowing:

• How accurate its temperature is
• How uniform the cavity is
• How stable it remains
• What its effective emissivity is
• How repeatable its radiation output is
• How its geometry affects irradiance
• How those characteristics contribute to uncertainty
• How the measurements are traceable

That characterization is what transforms a heat source into a reliable calibration reference.

Final Thoughts

Reference blackbodies are characterized as complete radiometric systems—not simply by checking whether their temperature controller reaches the desired setpoint.

Temperature, effective emissivity, cavity uniformity, stability, geometry, repeatability, radiometric output, and traceability all contribute to the quality of the radiation field presented to a heat flux sensor.

For Gardon Gauge and Schmidt-Boelter calibration, carefully characterizing these factors helps establish a controlled and defensible reference condition against which sensor sensitivity can be evaluated.

Combined with calibrated reference heat flux sensors, documented uncertainty, and ISO/IEC 17025 accredited procedures, a well-characterized reference blackbody becomes a critical component of high-accuracy radiative heat flux calibration.
